Cleaning Machines - Single Disc Machines

Single Disc Machines

Schwamborn ES330

Industrial Heavy Duty Multipurpose Single Disc Machine.The standard machine for the efficient Scrubbing, polishing & spray cleaning in small areas.

Acessories Included:

10ltrs Water Tank.
Scrubbing Brush.
Shampoo Brush.
Pad Holder.

Special Characteristics:

Motor overload protection.
Planetary gear drive.
Working up to the rim.
Easy to transport.

Specifications:

Voltage/Frequency: 230V / 50Hz.
Motor Power: 1000 W.
Drive: Gear Transmission.
Working Width: 330 mm / 13 inch.
Tool speed: 165 r.p.m.
Brush Pressure: 30 g/cm2.
Torque: 32 Nm.
Power supply cord: 12 m.
Noise Level: 58 db.
Operating Weight: 18 kg.

Range of Application:

Polishing small areas, polishing to the edge, wet cleaning, spray cleaning, cleaning small areas and stairs.
Made in Germany

Schwamborn ES430 E

Industrial Heavy Duty Multipurpose Single Disc Machine for the daily cleaning of hardfloors and carpets. Easy and ergonomic in operation.

Acessories Included:

10ltrs Water Tank.
Pad Holder.
Scrubbing Brush.
Shampoo Brush.

Special Characteristics:

Dead man switch.
Motor overload protection.
Working up to the rim.
Automatic belt tension.
Large transport wheels.

Specifications:

Voltage/Frequency: 230V / 50Hz.
Motor Power: 1300 W.
Working width: 430 mm / 17 inch.
Tool speed: 165 r.p.m.
Brush pressure: 30 g/cm2.
Torque: 46 Nm.
Power supply cord: 12 m.
Noise Level: 58 db.
Operating Weight: 32,5 kg.

Range of Application:

Polishing to the edge, wet cleaning, spray cleaning, shampooing.
Made in Germany

Schwamborn ES420

Industrial Heavy Duty Multipurpose Single Disc Machine.The right solution for daily cleaning tasks like scrubbing, carpet shampooing and polishing. The gear drive with an integrated overload clutch gives extra safety & durability during operation.

Acessories Included:

10ltr Water Tank.
Pad Holder.
Scrubbing Brush.
Shampoo Brush.

Special Characteristics:

Central water feed.
DOC-Drive overload clutch.
Gear drive resin.
Steel gears.

Technical Specifications:

Voltage/Frequency: 230V / 50 Hz.
Motor Power: 1300 W.
Drive: Gear Transmission.
Working width: 420 mm / 17 inch.
Tool speed: 175 r.p.m.
Brush Pressure: 29 g/cm2.
Torque: 44 Nm.
Power supply cord: 12 m.
Noise Level: 58 db.
Operating Weight: 34.5 kg.

Range of Application:

Polishing small areas, spray cleaning, shampooing, scrub, daily basic cleaning.
Made in Germany

Schwamborn EP430 Duo

Industrial Heavy Duty Multipurpose Single Disc Machine with Dual speed for cleaning, polishing and floor renovation.

Acessories Included:

10ltr Water Tank.
Pad Holder.
Scrubbing Brush.
Shampoo Brush.

Special Characteristics:

Motor overload protection.
Working up to the rim.
Large transport wheels.
Central water feed.
Two-speed version with 165 / 330 r.p.m.

Technical Specifications:

Voltage/Frequency: 230 V / 50 Hz.
Motor Power: 1200 / 1800 W.
Working Width: 430 mm / 17 inch.
Tool Speed: 165-330 rpm.
Brush Pressure: 32 g/cm2.
Torque: 46 / 37 Nm.
Power Suppy Cord: 12m.
Noise Level: 58db.
Working Pressure: 50 g/cm2.
Operating Weight: 34.5 kg.

Range of Application:

High gloss polishing of hard floors, shampooing, spray cleaning of hard floors.
Made in Germany

Schwamborn OES430 Oscillating Single Disc Machine for all cleaning applications.

The new OES 430 is a multifunctional, powerful and robust single disc floor cleaning machine designed for professional cleaning and care of all hard floor types. The oscillating head adapts to all surfaces and also enables problem-free working on uneven floors.

Acessories Included:

10ltr Water Tank.

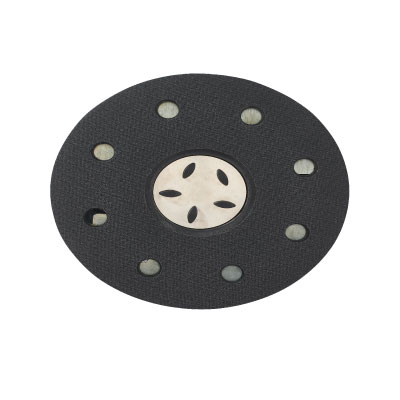

Pad Holder.
Scrubbing Brush.

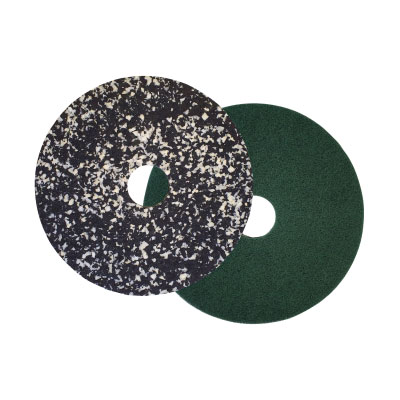

Pads.

Special Characteristics:

Powerful drive.
Smooth and quiet running.
Ergonomic guide rod.
Made of corrosion-protected material.

Technical Specifications:

Voltage/Frequency: 230V / 50 Hz.
Motor Power: 1600 W.
Working width: 430 mm.
Tool speed (Oscillations): 1410 r.p.m.
Brush Pressure: 36 g/cm2.
Power supply cord: 12 m.
Noise Level: 58 db.
Operating Weight: 50 kg.

Range of Application:

• Intensive professional cleaning of a variety of flooring finish, & daily maintenance cleaning, stubborn soiling, polishing, scrubbing, refurbishing and crystallising of marble.
Made in Germany

Schwamborn ES51S

Industrial Heavy Duty Multipurpose Single Disc Machine. Robust and reliable design. Suited for the most heaviest application in the cleaning industry.

Acessories Included:

10ltr Water Tank.
Pad Holder.
Scrubbing Brush.

Special Characteristics:

Long service life.
Motor and drive, dust-tight and splash-proof.
Metal gear drive.
Guide rod mounting with manual adjustment.

Technical Specifications:

Voltage/Frequency: 230 V / 50 Hz.
Motor Power: 2300 W.
Drive: Gear Metal.
Working width: 510 mm / 20 inch.
Tool speed: 156 r.p.m.
Brush Pressure: 37 g/cm2.
Torque: 110 Nm.
Power supply cord: 12 m.
Noise Level: 62 db(A).
Operating Weight: 57 kg.

Range of Application:

Grinding concrete, screed, asphalt, remove adhesives, coatings, for industrialobject renovation, crystallize, industrial cleaning, suitable for the most demanding cleaning tasks.
Made in Germany

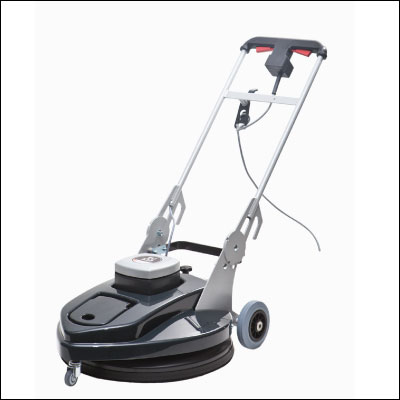

Schwamborn EU510

Ultra-High-Speed solution with dust control. For high-gloss finish on vinyl, linoleum and stone floors. The flexible pad system provides a perfect and glossy finish. A low noise level and passive dust control ensures a convenient operation.
