Schwamborn BEF 201 - High performance surface planer, concrete and screed milling machine for small to medium sized areas.
Applications:
- Removal of uneven floors, supernatants, remove markers, milling off coatings.
Features:
- Dust sealed drum bearing.
- Milling housing made of cast iron, particularly heavy design.
- Rotor bearing.
- Motor overload protection.
- Central drum lowering function and depth setting.
Technical Specification:
- Voltage: 230V.
- Frequency: 50Hz.
- Motor: 2.2kW.
- Working width: 200mm.
- Operating weight: 77kg.
- Edge distance: 10mm.
- Dust control: 50mm.
- Dimensions L x W x H: 94 x 37,5 x 90
- Ref. No. 795105
- Made in Germany

Schwamborn BEF 250 - With mechanical brake system, concrete and screed milling machine for medium-sized and big surfaces.
Applications:
- Removal of uneven floors, supernatants, remove markers, removing road markings, milling off coatings, deep removal of concrete and screed floors.
Features:
- MOP – Motor overload protection.
- Milling, Scarifying direction forwards.
- Micro depth control.
- Drum in front, thus no copy effect (System Schwamborn).
- Quick drum lowering/lifting.
- Drum with bushes, longer service life.
- Brake adjustable, engage/disengage.
- USF.
- Adjustable brake system withon/off device.
Technical Specification:
- Voltage: 400 V.
- Frequency: 50 Hz
- Motor: 5,5kW.
- Working width: 250mm.
- Operating weight: 182kg.
- Edge distance: 65mm.
- Dust control: 76mmH: 135 x 50,7 x 109
- Ref. No. 707011
- Made in Germany

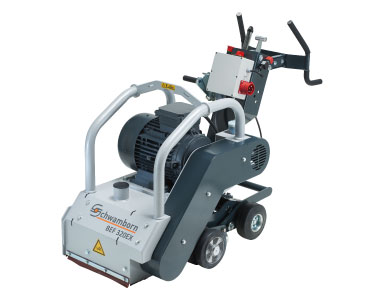

Schwamborn BEF 320E - High milling performance even in harsh application conditions on concrete surfaces and coatings. Innovative milling technology for large areas with up to 30 % increase in performance.
Applications:
- Removal of uneven floors, supernatants, remove markers, removing road markings, milling off coatings, deep removal of concrete and screed floors.
Features:
- MOP – Motor overload protection.
- Micro depth control.
- Drum in front, thus no copy effectv(System Schwamborn).
- Quick drum lowering/lifting.
- Drum with bushes, longer service life.
- Drive, infinitely variable, 4 x 4 all-wheel drive.
- Drive, forward + reverse.
- Crane hook.
- Ergonomic handle, adjustable.
- USF.
- Central drum lowering function and depth setting.
Technical Specification:
- Voltage: 400V.
- Frequency: 50Hz.
- Motor: 11kW.
- Working width: 320mm.
- Operating weight: 403kg.
- Edge distance: 72mm.
- Dust control: 76mm.
- Dimensions L x W x H: 148 x 65,3 x 112
- Ref. No. 717000
- Made in Germany

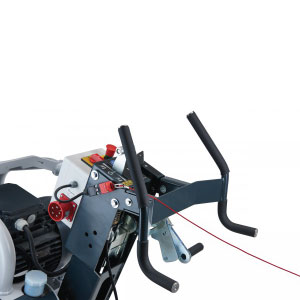

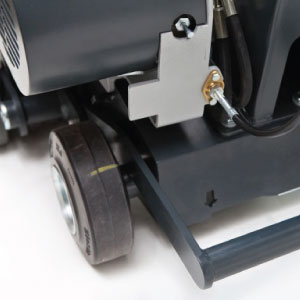

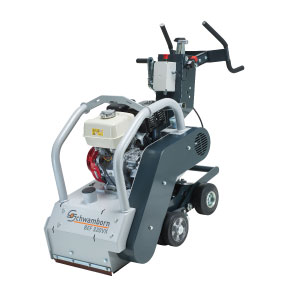

Schwamborn BEF 320VX Milling Machine.
Innovative milling technology for large areas with up to
30 % increase in performance. An increased cutter impact performance and the even advance via a 4 x 4 all-wheel drive are a guarantee for a high milling performance even in harsh application conditions on concrete surfaces and coatings.
Applications:
Milling of concrete, grooving of concrete surfaces, removal of coatings and markings.Features:
- 4 x 4 all-wheel drive.
- Infinitely variable forward/reverse drive.
- Drum with replacement bushes.
- Central drum lowering function and depth setting.
- Crane hook.
Technical Specifications:
- Drive: Petrol.
- Power output: 8,7 kW.
- Working width: 320 mm.
- Operating Weight: 344 kg.
- Edge distance: 72 mm.
- Petrol Tank: 6.1 L.
- Dust control: 76 mm.
- Carbide Cutters.
- Dimension: 148 x 65.3 x 112 cm
- Reference No. 717010
- Made in Germany
